Plugin Documentation

KafkaStream
Apache Kafka producer / consumer / admin

Produce to and consume from Apache Kafka, plus admin operations, with Blueprint topic and broker validation.

v1.0.0
UE 4.27–5.0+
Win64 · Linux
Category Networking
Disabled by default
Alpha XP

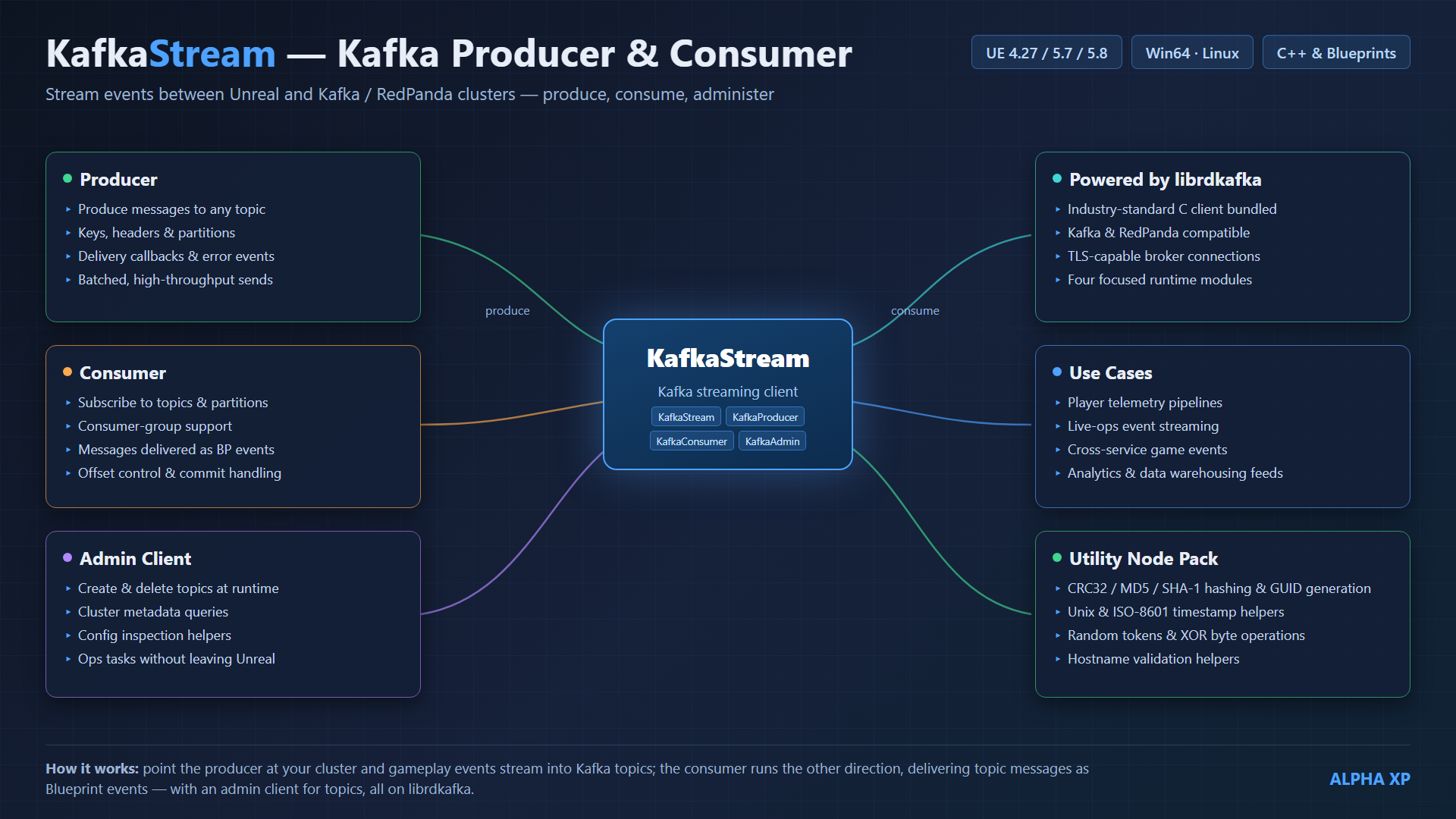

KafkaStream diagram
KafkaStream — architecture & feature overview

Overview

KafkaStream wraps librdkafka with producer, consumer and admin modules behind a subsystem. Helper nodes validate topic names and bootstrap broker lists.

Fork note The brand module EasyKafka was renamed to KafkaStream for UE 4.27–5.0+ (domain modules KafkaConsumer/Producer/Admin and the bundled KafkaLib kept). A validation helper library was added.
Disabled by default This plugin ships the bundled third-party library librdkafka (KafkaLib) and is shipped with "EnabledByDefault": false. Enable it from Edit → Plugins (or set the flag in its .uplugin) once the library builds on your target platform.

Requirements

RequirementDetails
Unreal Engine4.27–5.0+
Bundled librarylibrdkafka (KafkaLib) (in Source/ThirdParty)
LanguageBlueprints and/or C++
PlatformsWin64 · Linux

Installation

  1. Copy the KafkaStream folder into your project's Plugins/ directory.
  2. C++ projects: regenerate project files and build. Blueprint-only projects can launch the editor directly.
  3. Open Edit → Plugins and confirm KafkaStream is enabled (it is off by default — turn it on).

Helpers (Kafka Stream Utility Library)

NodeTypeDescription
Is Valid Kafka TopicPureValidate a topic name (1–249 chars, [a-zA-Z0-9._-]).
Is Valid Broker ListPureValidate a comma-separated host:port bootstrap list.

Subsystem

Producer / consumer / admin operations are driven through UKafkaStreamSubsystem and the Kafka domain modules. See Source/KafkaStream and the sibling Kafka modules.

Utility node pack

General-purpose networking utilities added to UKafkaStreamUtilityLibrary — available from Blueprints and C++.

NodeTypeDescription
CRC32 Of BytesPureCRC32 checksum of a byte array.
MD5 Of String / SHA1 Of StringPureHex digests of a UTF-8 string.
Make Guid StringPureNew random GUID (hyphenated).
Now Unix SecondsPureCurrent UTC time as Unix seconds.
Unix Seconds To ISO8601PureUnix seconds → ISO-8601 UTC string.
Format Byte SizePureHuman-readable size, e.g. 1536 → 1.5 KB.
Random TokenPureRandom alphanumeric token (ids, nonces).
XOR Bytes With KeyPureXOR bytes with a repeating key (obfuscation, not encryption).
Is Valid HostnamePureRFC-952/1123-style hostname validation.

Credits

© Alpha XP — alphaxp.net. Developed and maintained for UE 4.27–5.0+.
